PXE boot not working

[fedora]

Hi,

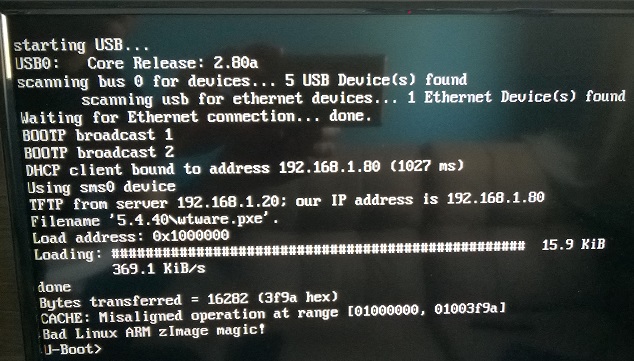

I'm trying to use a RB Pi 2 to boot through network, but it is not working, I setup DHCP, TFTP on WTware Center, it works, gets the IP address, find the TFTP and it downloads the wtware.pxe file, but it shows the message "CACHE: Misaligned operation at range [01000000, 01003f9a] Bad LINUX ARM zImage magic!"
What's wrong?

PS: If I boot the system through the SD card it works fine! I'm able to connect to terminal server, the problem just happens through PXE boot.



Raspberry boot


[aka]

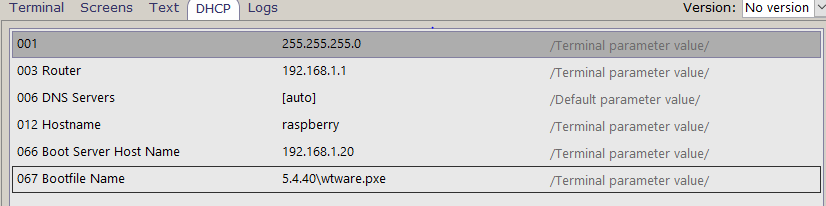

Do not write "5.4.40\wtware.pxe". Doubleclick on 067 line and check server autodetection.

If you reeeealy want to specify value, put "5.4.40\kernel7.img" here.

[Dodavid]

Hi,

i have the same problem, but I only get the message Bad Linux ARM zImage magic!

[aka]

Did you try the same solution for the same problem?
